inSure®

inSure®

Farris

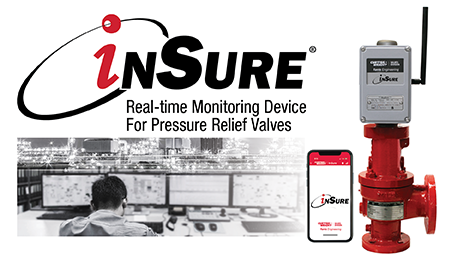

Real-Time Monitoring For Pressure Relief Valves

The inSure® Monitoring Device detects pressure events by measuring valve stem movement and recording critical data. This data can be obtained via on-line app or communicated to your Distributed Control System or (DCS) and used to report fugitive emissions more accurately. It can also detect unstable flow in challenging applications to troubleshoot your system and reduce maintenance costs.

More Details

  • Features:
  • Detect and record pressure relief events to improve data acquisition and flow calculations
  • Connect to DCS via wired or wireless communication
  • Install easily with no penetration of valve pressure boundary
  • Use in hazardous locations with intrinsic safety certification
  • Powered by replaceable battery
  • Retrofit to 2600 Series valve or purchase complete valve with factory installed monitor
  • Internal storage for logging relief events

inSure Monitoring Device Catalog

Installation Operation and Maintenance Manual

Overview

General


inSure®

Communication Protocol

Download the inSure App for IOS or Android, see the Installation and Operation Manual

The inSure device utilizes Bluetooth connectivity with the CW inSure App to calibrate the unit and provide live valve status of pressure events including time, temperature, battery voltage, valve open or closed, % open, and lift. This data can then be used to calculate volume of relief event emissions. Each unit can store 180MB of data that can be exported from the app.

Wired or Wireless Distributed Control System (DCS) Communication with your DCS is achieved through multiple protocols. The product offers a wired 4-20mA version, and WirelessHART® or ISA100WirelessTM for wireless connectivity. Refer to the Installation Operation and Maintenance Manual for more information.
